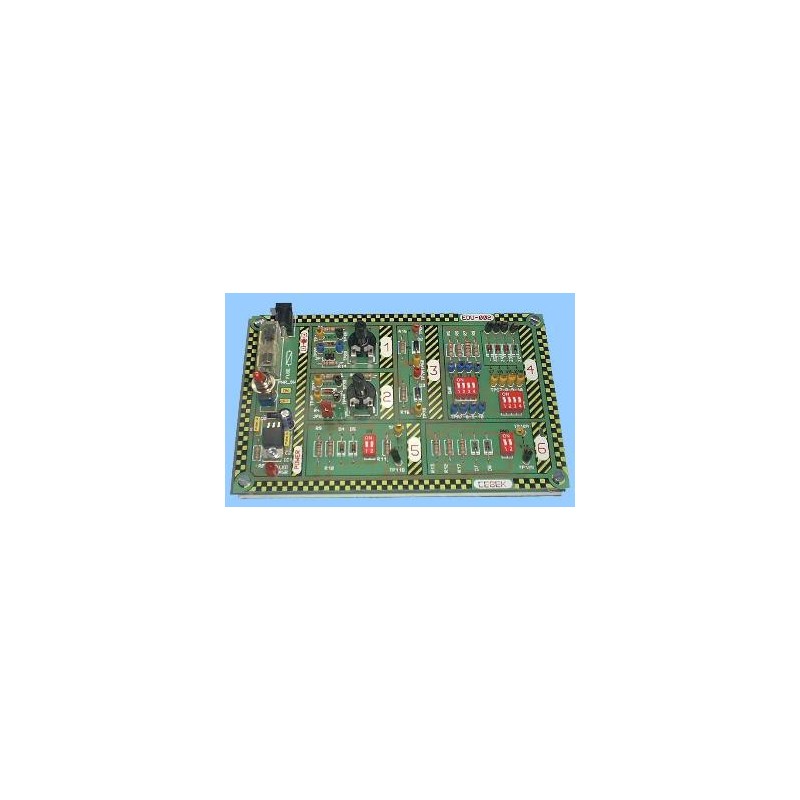

KIT PRACTICA DE DIODOS Y ZENERS

EDU-002 is composed of 6 practice or experiments that allow to check and contrast the principles of the diode and the zener.Practice 1. Elbow voltage of the diode. Region of reptura.Practice 2. Intensity Vs Input voltage in ZenerPractical source 3. Types of diodes. Voltage drop in Shockty and SiliconPractice 4. Calculation Resistance for constant current with different Zener.Practice 5. Properties of the diode. In C.C. Logical gate OR.Practice 6. Properties of the diode. In C.C. Logical AND gate.
