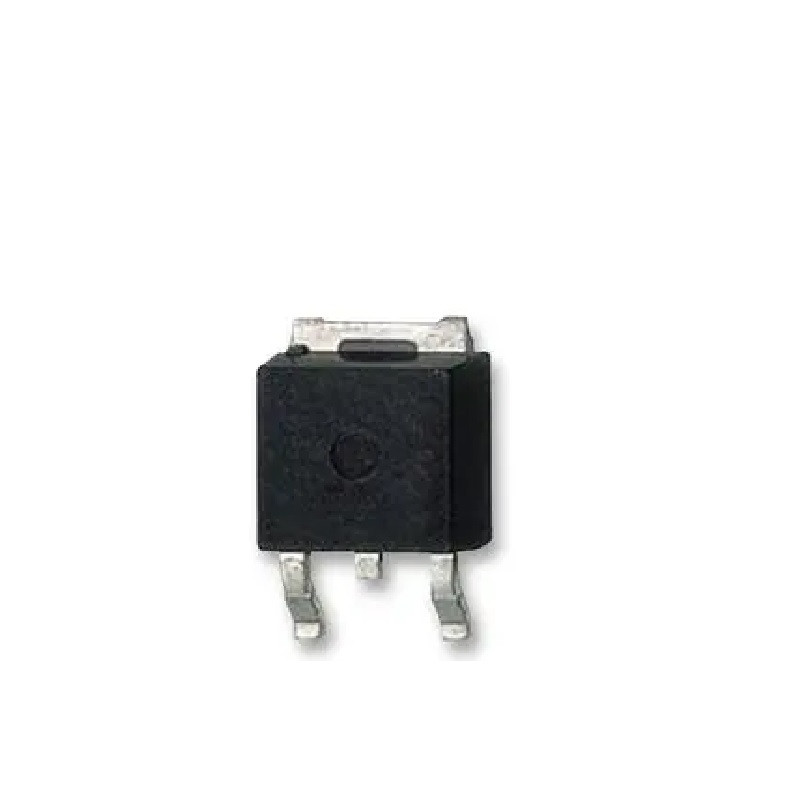

STD12NF06T4 MOSFET, N CH, 60V, 12A, DPAK
€2.21
Tax included
12NF06 Power MOSFET, N-Channel, 60 V, 12 A, 0.08 ohm, TO-252 (DPAK), Surface Mount
The STD12NF06T4 is a STripFET™ II N-channel Power MOSFET developed using STMicroelectronics unique Single Feature Size™ strip-based process. The device has extremely high packing density for low ON-resistance, rugged avalanche characteristics and less critical alignment steps therefore a remarkable manufacturing reproducibility.
Exceptional dV/dt capability
Low gate charge
-55 to 175°C Operating junction temperature range
Channel Type N-Channel Continuous Drain Current Id 12A Transistor Package TO-252 (DPAK) Test Voltage Rds(on) 10V Power Dissipation 30W Max. Operating Temperature 175°C Substance of Very High Concern (SVHC) No SVHC (Jan 21, 2025) Drain-Source Voltage (Vds) 60V Drain-Source On Resistance 0.08ohm Transistor Mounting Surface Mount Max. Gate-Source Threshold Voltage 3V Number of Pins 3Pins Humidity Sensitivity Level (MSL) MSL 1 - Unlimited
2098158
