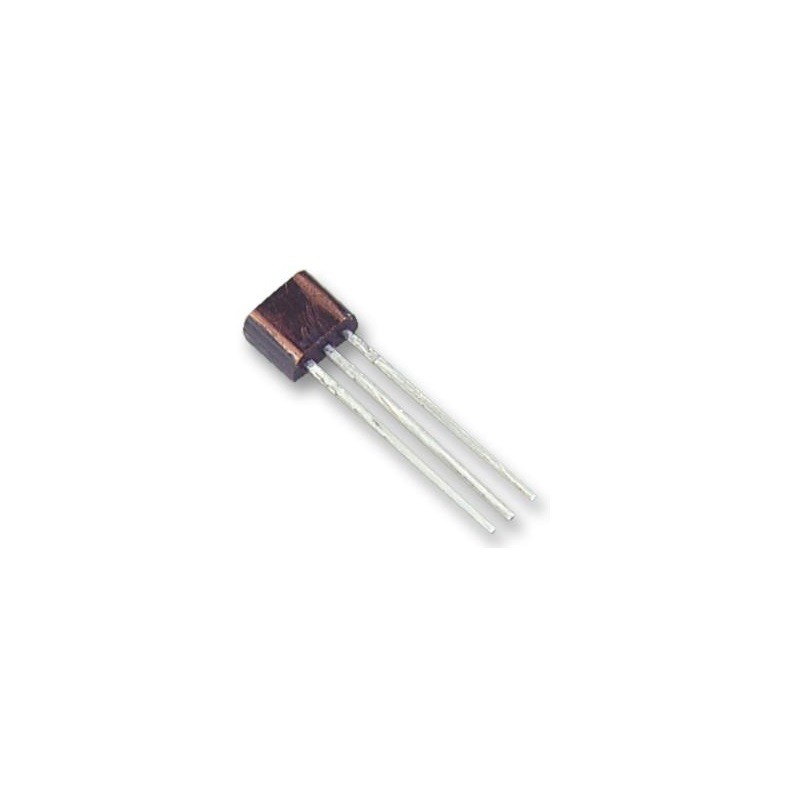

ZTX651 TRANSISTOR

The ZTX651 from Diode Inc is a 60V NPN through-hole medium power transistor in E-Line package (TO-92 compatible). This device is based on molded plastic and "green" molding compound and the terminals have a matte tin finish. AEC-Q101 Automotive Qualification UL Recognized Collector to emitter voltage (Vce) of 60V Collector voltage based on 80V Power dissipation (pd) of 1.5W 2A continuous collector current. Collector-to-emitter breakdown voltage of 60 V at a collector current of 100 mA Collector emitter saturation voltage Vce(sat) of 500 mV at a collector current of 2 A Operating temperature range -55°C to 200°C ​
