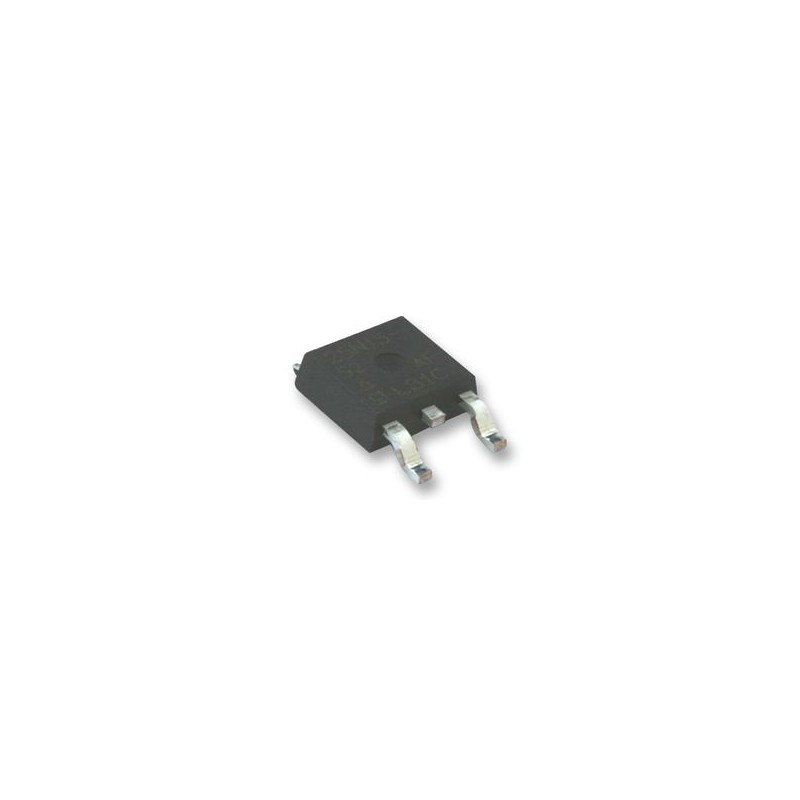

IRLR7843TRPBF MOSFET, N-CHANNEL, 30V, 161A, TO-252AA-3

The IRLR7843TRPBF is a HEXFET® single N-channel Power MOSFET offers ultra-low gate impedance, fully characterized avalanche voltage and current. It is suitable for high frequency synchronous buck converters and high frequency isolated DC-to-DC converter with synchronous rectification.
    Very low static drain-to-source ON-resistance at 4.5V gate-to-source voltage
    Logic level

Channel Type: N Channel Transistor Polarity: N Channel Continuous Drain Current Id: 161A Drain-Source Voltage (Vds): 30V Resistance in Conductive State Rds(on): 0.0026ohm Drain-Source Resistance in Conducting State: 0.0026ohm Test Voltage Rds(on): 10V Transistor Mount: Surface Mount Max Gate-Source Threshold Voltage: 2.3V Pd Power Dissipation: 140W Transistor Package: TO-252AA Power Dissipation: 140W Pin Number: 3Pins Max Operating Temperature: 175°C
