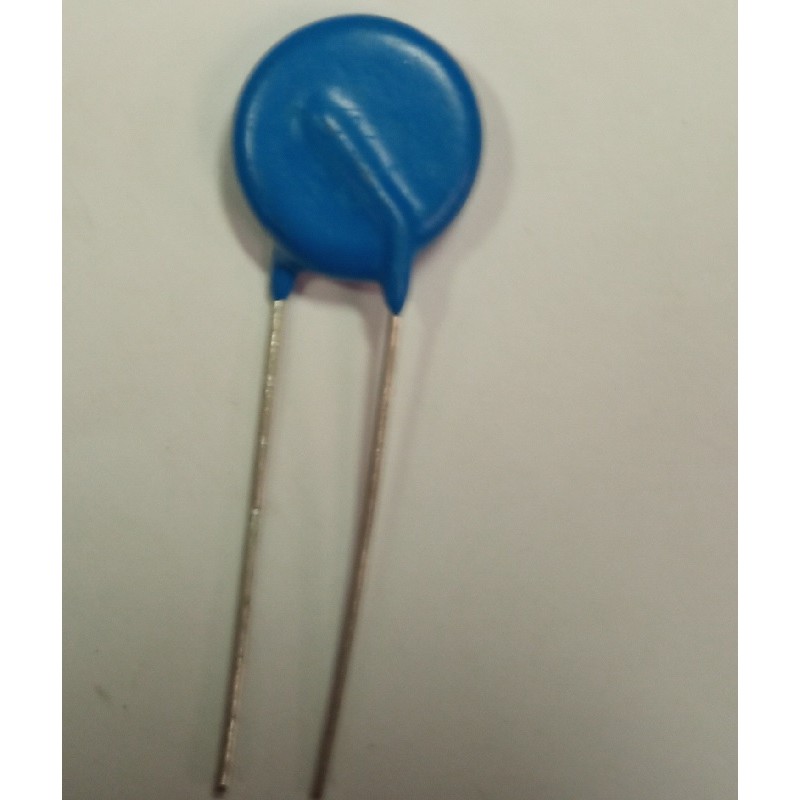

VARISTOR 385V 14MM B72214P2381K101
€0.97
Tax included
VARISTOR, 14MM, 385 V S14-K385K1
VARISTOR, 14MM, 385 V
Series: AdvanceD-MP
Varistor, Type: Metal Oxide Varistor (MOV)
Transient Maximum Current @ 8 / 20μs: 6kA
Model of Varistor: 14mm Disc
Voltage Vc Max Holding: 1.025kV
Maximum Power (10 / 1000uS): 180J
Rated Voltage V DC: 505V
Rated Voltage V AC: 385V
Humidity Sensitivity Level (MSL): -
Extremely Concerned Substance (SVHC): No SVHC (16-Dec-2013)
Maximum Impulse Current IPP @ 8 / 20μs: 6000A
Transient Current: 6kA
Conductor Diameter: 0.8mm
Body Diameter: 16.5mm
Transient Energy: 180J
Cable Spacing: 7.5mm
External Length / Height: 20.5mm
Conductor Length: 25mm
Certification Organizations: IEC, UL
External Depth: 7.7mm
Suppression Voltage: 1.025kV
Varistor voltage: 385V
Varistor @ 1mA Voltage: 620V
Suppressor Type: Varistor
Series: AdvanceD-MP
Varistor, Type: Metal Oxide Varistor (MOV)
Transient Maximum Current @ 8 / 20μs: 6kA
Model of Varistor: 14mm Disc
Voltage Vc Max Holding: 1.025kV
Maximum Power (10 / 1000uS): 180J
Rated Voltage V DC: 505V
Rated Voltage V AC: 385V
Humidity Sensitivity Level (MSL): -
Extremely Concerned Substance (SVHC): No SVHC (16-Dec-2013)
Maximum Impulse Current IPP @ 8 / 20μs: 6000A
Transient Current: 6kA
Conductor Diameter: 0.8mm
Body Diameter: 16.5mm
Transient Energy: 180J
Cable Spacing: 7.5mm
External Length / Height: 20.5mm
Conductor Length: 25mm
Certification Organizations: IEC, UL
External Depth: 7.7mm
Suppression Voltage: 1.025kV
Varistor voltage: 385V
Varistor @ 1mA Voltage: 620V
Suppressor Type: Varistor
1781934
