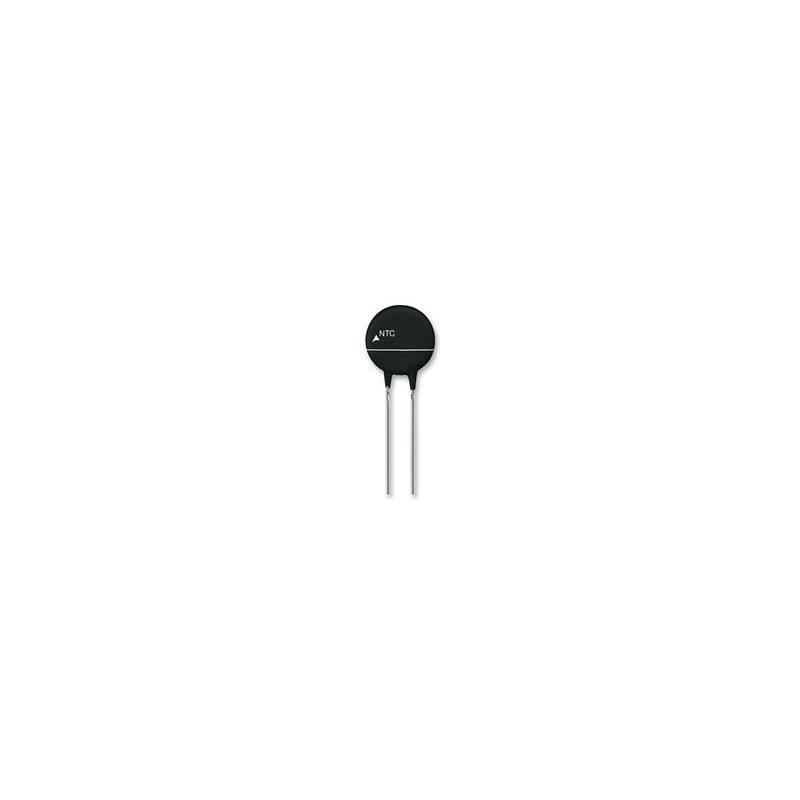

THERMISTOR, NTC B57237S709M, 7.0

TERMISTOR, NTC
     Thermistor type: NTC
     Resistance: 7ohm
     Thermistor, Tolerance: -20% to + 20%
     Beta Value (K): 3060K
     Thermistor, Type: Radially Loaded
     No. of Contacts: 2
     Working Temperature Min .: -55 ° C
     Max Working Temperature: 170 ° C
     Extremely Worrying Substance (SVHC): No SVHC (Dec 16, 2013)
     Diameter of the Body: 15mm
     Max Intensity: 4.2A
     Intensity Temperature: 25 ° C
     Conductor Length: 25mm
     Upper Temperature Limit, Beta Value: 100 ° C
     Working Temperature Range: -55 ° C to + 170 ° C
     Temperature Resistance: 25 ° C
     Resistance, Tolerance +: 20%
     Resistance, Tolerance -: 20%
     Series: B572
     Resistance Tolerance: ± 20%
     Beta Value Less than Temperarua Limit: 25 ° C
