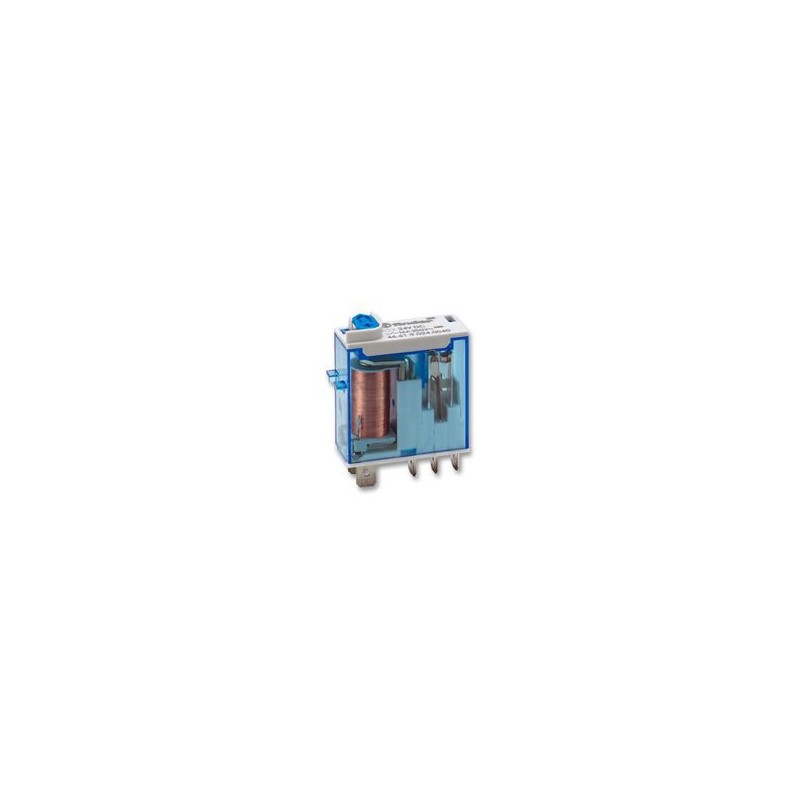

RELAY 230VAC 16A SPCO 46.61.8.230.0054
€17.63
Tax included
- RELÉ, SPCO, 16A, 230VCA
- Product Range: FINDER - 46 Series
- Coil Voltage: 230VCA
- Contact Current: 25 A
- Contact Voltage VAC: 250V
- Contact Configuration: SPDT
- Coil Resistance: 28kohm
- Relay Mounting: Rápido Conector
- SVHC: No SVHC (20-Jun-2013)
- Organismos de homologación: CSA, GOST, RINA, VDE
- Categoría de homologación: UL Recognised
- Coil Current: 45mA
- Coil Type: AC
- Coil Voltage VAC Nom: 230V
- Contact Current AC Max: 25 A
- Contact Current Max: 25 A
- Contact Current Rating: 16A
- Contact Voltage AC Max: 250V
- Contact Voltage AC Nom: 250V
- Dielectric Voltage Contact to Contact: 1000VCA
- External Depth: 12.4mm
- External Height: 32.8mm
- External Length / Height: 32.8mm
- External Width: 29mm
- Tipo de montaje: enchufables / de conexión
- N.º of Electrical Operations: 100000
- N.º of Mechanical Operations: 10000000
- N.º of Pins: 5
- N.º of Poles: 1
- Nom Operating Power: 1.2VA
- Operating Temperature Max: 70°C
- Operating Temperature Min: -40°C
- Operating Time: 15ms
- Relay Type: Miniatura
- Release Time: 5ms
- Serie: 46
- Switching Voltage AC / DC Max: 440VCA
1329673
