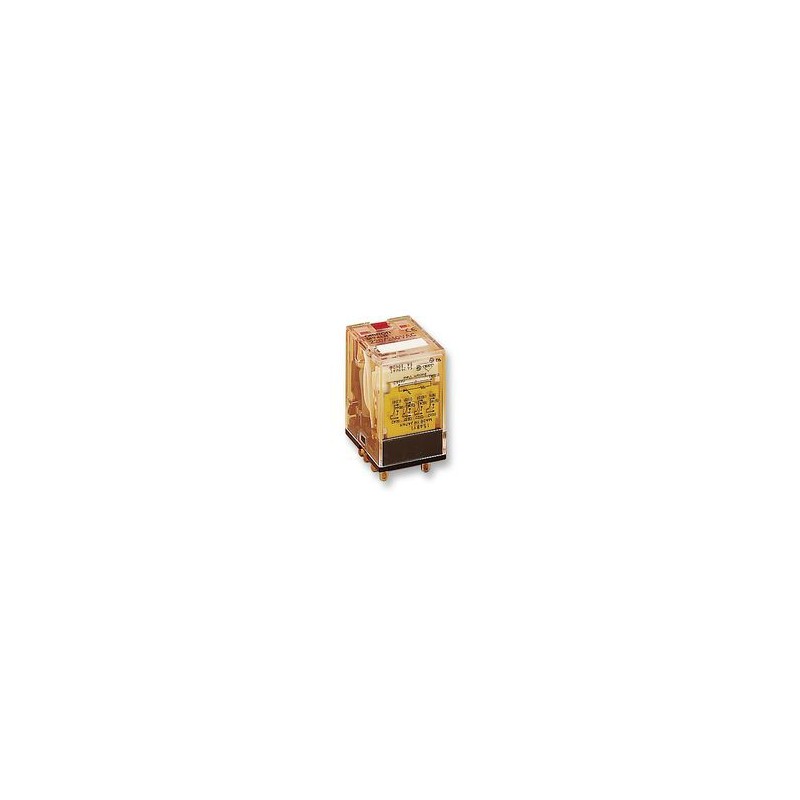

RELAY MY2IN 220-240AC, DPDT, 250VAC, 30V
€15.45
Tax included
Power Relay, DPDT, 240 VAC, 10 A, MY Series, Female, Non-Interlocked
- RELÉ, DPCO, 220 V CA
- Product Range: OMRON - MY Series
- Coil Voltage: 240VAC
- Contact Current: 10A
- Contact Voltage VAC: 250V
- Contact Voltage VDC: 30V
- Contact Configuration: DPCO
- Coil Resistance: 18.79kohm
- Relay Mounting: Rápido Conector
- SVHC: No SVHC (20-Jun-2013)
- AC Coil Power: 1.2VA
- Coil Current: 5.3mA
- Límite inferior de porcentaje de funcionamiento de la bobina: 80%
- Límite superior de porcentaje de funcionamiento de la bobina: 110%
- Coil Type: AC
- Coil Voltage VAC Nom: 240V
- Contact Current AC Max: 10A
- Contact Current DC Max: 10A
- Contact Current Max: 10A
- Contact Voltage AC Max: 250V
- Contact Voltage AC Nom: 250V
- Contact Voltage DC Max: 30V
- Contact Voltage DC Nom: 30V
- DC Coil Power: 0.9W
- External Depth: 36mm
- External Height: 28mm
- External Length / Height: 28mm
- External Width: 21.5mm
- Tipo de montaje: enchufables / de conexión
- N.º of Poles: 2
- Nom Operating Power: 1.1VA
- Operating Temperature Max: 70°C
- Operating Temperature Min: -55°C
- Operating Time: 20ms
- Relay Type: Uso general
- Release Time: 20ms
- Serie: MY
186405
