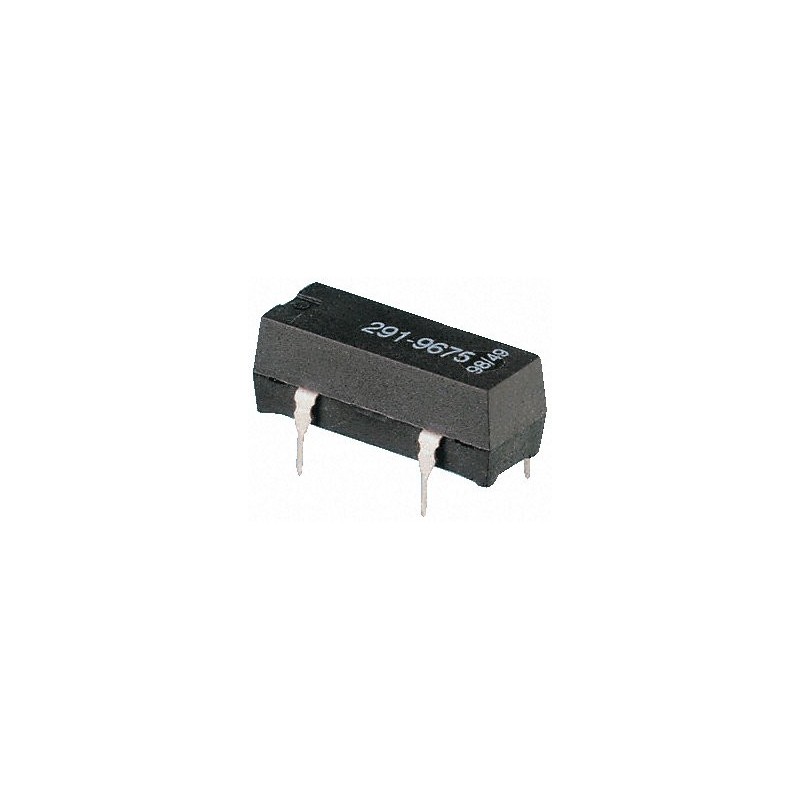

RELAY DIP 12-1A84-BV681 of sheets
€9.50
Tax included
Reed relay RS Pro, DIP12-1A84-BV681, SPNO, 12V dc, 0.5 A
Aislamiento de Bobina a Contacto |
2.5kV dc |
|
Altura |
7.5mm |
|
Configuración de los Contactos |
SPST-NA |
|
Corriente de Conmutación Máxima AC |
500 mA |
|
Corriente de Conmutación Máxima DC |
500 mA |
|
Longitud |
19.3mm |
|
Material de los Contactos |
Aleación de cobre chapado en estaño |
|
Potencia de Conmutación Máxima DC |
10 W |
|
Potencia de la Bobina |
145mW |
|
Profundidad |
7mm |
|
Resistencia de la Bobina |
1.000 Ω |
|
Resistencia de los Contactos |
200 mΩ |
|
Temperatura de Funcionamiento Máxima |
+70°C |
|
Temperatura de Funcionamiento Mínima |
-20°C |
|
Tensión de Conmutación Máxima AC |
300V ac |
|
Tensión de Conmutación Máxima DC |
300V dc |
|
Tensión de la Bobina |
12V dc |
|
Tipo de Montaje |
PCB |
|
Tipo de Terminal |
Orificio Pasante |
2919681
