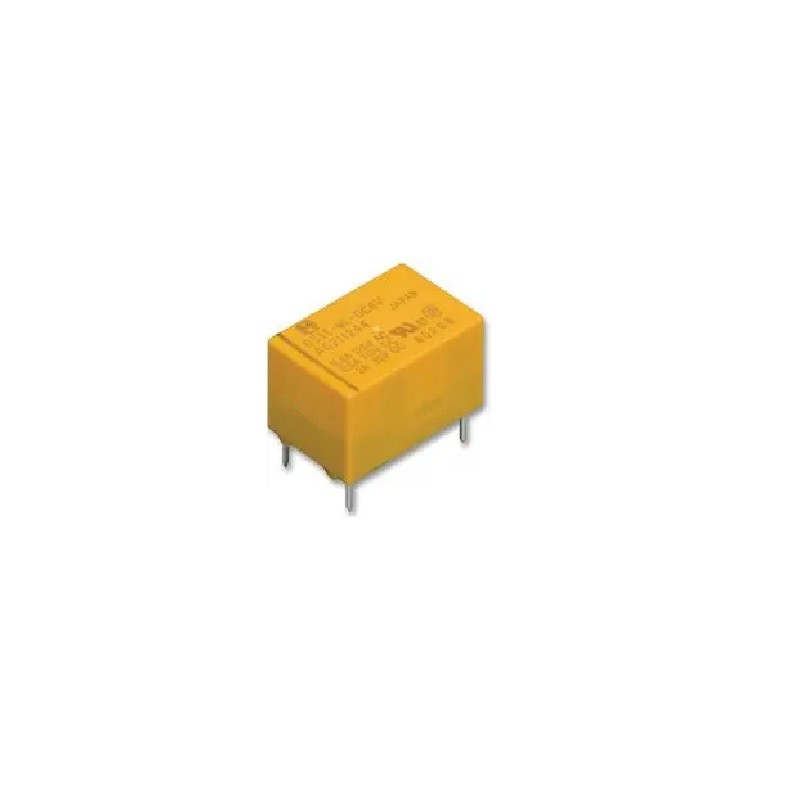

DS1E-S-DC12V RELAY, SIGNAL, SPDT, 30VDC, 2A

€11.01
Tax included

Signal Relay, 12 VDC, SPDT, 2 A, DS, Through Hole, Non-Latching

Quantity
Expected date in 1 to 2 weeks

The DS1E-S-DC12V is a high reliability Single Side Stable with Ag + Au clad contact and SPDT contact configuration. Epoxy resin seals the parts and cut off the external atmosphere, thus enabling use in difficult environments. It can be used with automatic solder and automatic wash systems. Highly stable gold cladding on the contacts ensures that contact resistance changes little over time. Furthermore, the use of twin contacts, a configuration that performs with superior contact reliability, ensures extremely low contact failure rates even under low level loads. High-performance polarized magnetic circuits that utilize the energy of permanent magnets have made it possible to create relays with strong resistance to shock and vibration.

    High sensitivity type
    2A/30VDC (resistive load) Nominal switching capacity
    60W/125VA (resistive load) Maximum switching power
    3A Maximum carrying current
    10µA, 10mVDC Minimum switching capacity (reference value)
    50mR Maximum initial contact resistance (by voltage drop 6VDC/1A)
    100MR at 500VDC Minimum insulation resistance (initial)

1652598
