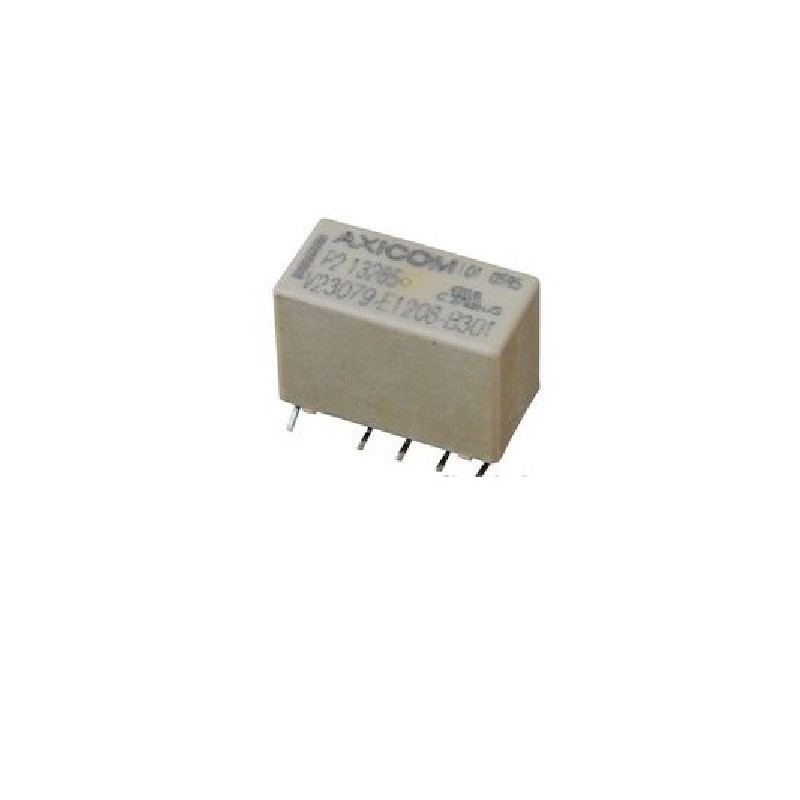

V23079E1208B301 RELAY, SIGNAL, DPDT, 250VAC, 220VDC, 2A
€11.20
Tax included
Signal Relay, 3 VDC, DPDT, 2 A, P2 / V23079 Series, SMD, Double Interlock Coil
The P2/V23079 series Signal Relays with DC coil. This V23079-series signal relay 2-form-C (DPDT) Au-plated AgNi bifurcated contact. SMT long terminals, high sensitivity for low power consumption 140mW/70mW. Single coil version with surge voltage resistance between contact and coil 2.5kV (2/10µs) meets the Telcordia Requirement GR-1089, 1.5kV (10/160µs) meets FCC Part 68.
Standard telecom relay
SMT version, monostable DC coil
Slim line relay
Immersion cleanable
-40 to 85°C Operating temperature range
Wash tight RT III environmental protection rating
Coil Voltage: 3VDC Contact Configuration: DPDT Contact Current: 2A Product Range: P2 / V23079 Series Relay Mounting: SMD Coil Type: Double Locking Coil Relay Terminals: Solder VAC Contact Voltage: 250V VDC Contact: 220V Contact Material: Silver-Nickel Coil Resistance: 64ohm
2787192
