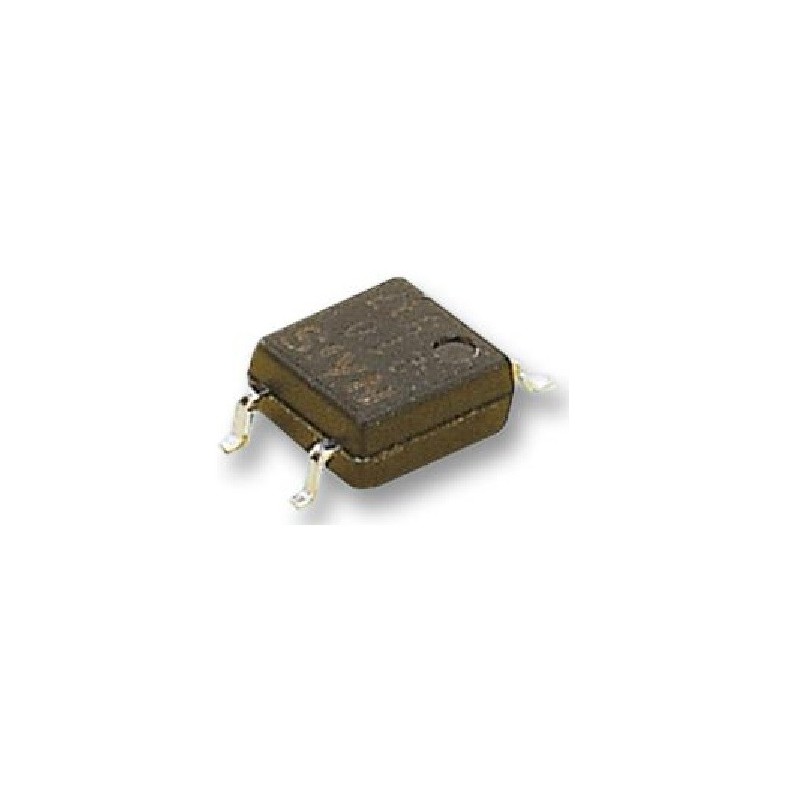

DF10S DIODE RECTIFIER, 1,5A, 1000V
€1.69
Tax included
Bridge Rectifier Diode, One Phase, 1 kV, 1.5 A, SDIP, 1.1 V, 4 Pins
The DF10S is a passivated bridge rectifier with glass that responds to the growing need to improve the efficiency of power supplies, improve the transient response capacity and reliability as well as reduce the size, so that the DFxS family sets a new standard of performance. The design offers a capacity for 50A transients. This is important when it comes to improving reliability and increasing efficiency. High efficiency designs that seek to reduce circuit resistance since, unfortunately, it can result in increased inrush transients. Thus, a high transient overcurrent capacity is required to maintain or improve reliability. The design also offers better efficiency when reaching VF 1.5A of maximum 1.1V at 25 ° C. This lower VF also supports a better cooled and more efficient operation.
Maximum bridge bridge input RMS 700V
3,1W power dissipation
Total capacitance per termination from 25pF to 4V / 1MHz
UL certification
Maximum bridge bridge input RMS 700V
3,1W power dissipation
Total capacitance per termination from 25pF to 4V / 1MHz
UL certification
1470962
