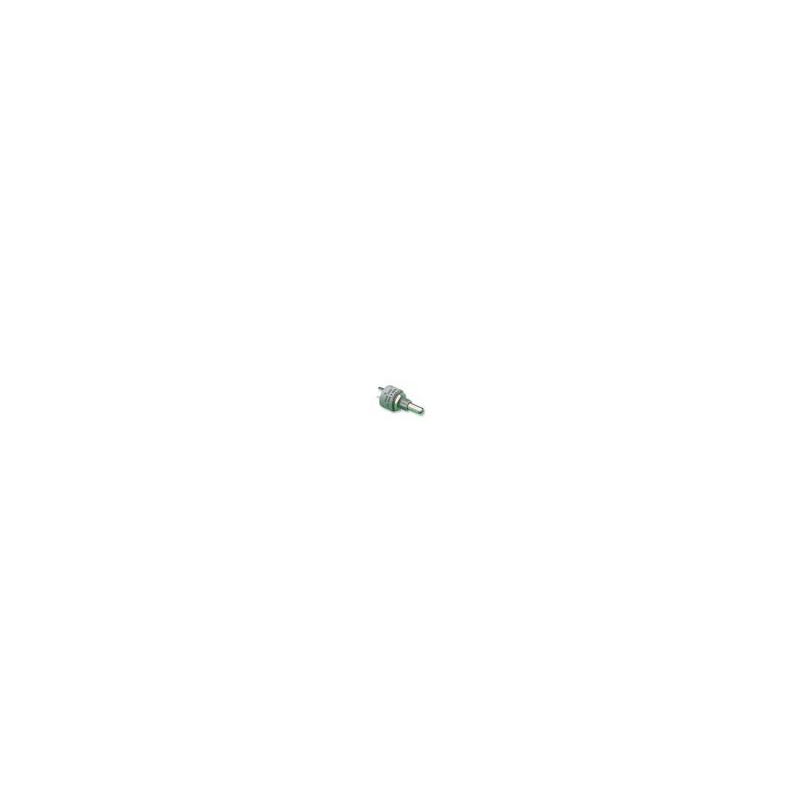

POTENTIOMETER 22K 3W LINEAR PE30LOFL223KAB
€27.33
Tax included
- POTENTIOMETER, LINEAR, 22K, 3W, 10%
- Track Resistance: 22kohm
- Track Taper: Linear
- No. of Turns: 1
- Shaft Diameter: 6mm
- Shaft Length - Metric: 25mm
- Resistance Tolerance: ± 10%
- Power Rating: 3W
- Potentiometer Mounting: Panel
- No. of Gangs: 1
- Adjustment Type: Top
- Body Diameter: 19.7mm
- Contact Resistance Variation +: 3%
- Electrical Angular Rotation Tolerance +: 10°
- Electrical Angular Rotation Tolerance -: 10°
- External Length / Height: 11.5mm
- Full Power Rating Temperature: 70°C
- Mechanical Angular Rotation Tolerance +: 5°
- Mechanical Angular Rotation Tolerance -: 5°
- Mounting Type: Panel
- Operating Temperature Max: 125°C
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +125°C
- Proof Voltage: 2500V
- Resistance: 22kohm
- Resistor Element Material: Cermet
- Rotation Electrical Angle: 270°
- Rotation Mechanical Angle: 300°
- Series: PE30
- Temperature Coeff. +: 100ppm/°C
- Temperature Coeff. -: 100ppm/°C
- Temperature Coefficient: ± 100ppm/°C
- Terminal Resistance Variation: 3%
- Terminal Type: Solder Lug
1141588
