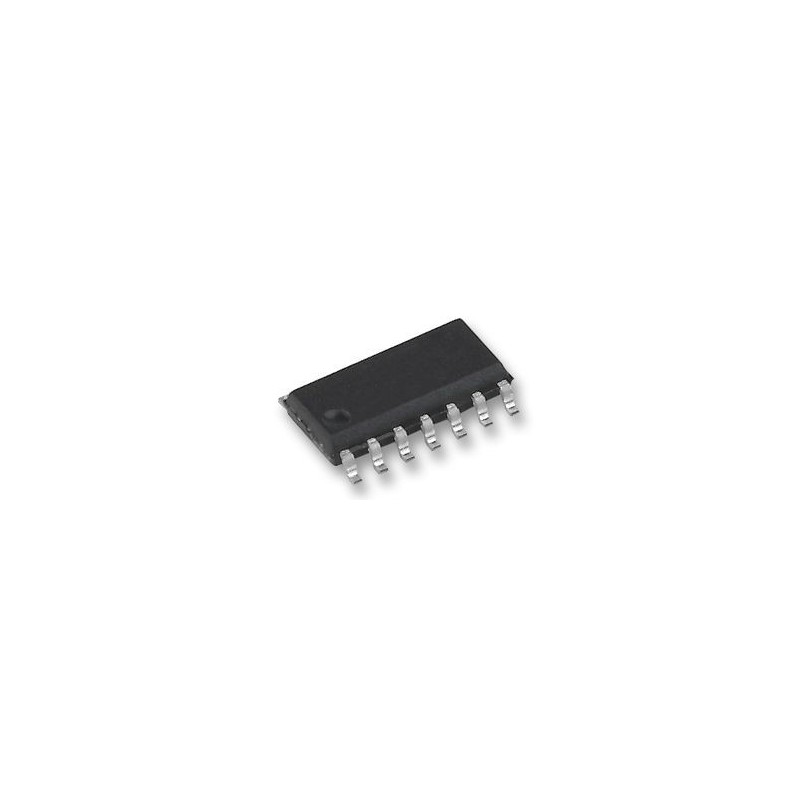

LM339D COMPARATOR QUEAD, SOIC14, SMD, 339
€0.38
Tax included
The LM339D is a quad differential comparator in 14 pin SOIC package. This device consists of four independent voltage comparators that are designed to operate from single power supply over wide range of voltages. LM339D can operate with dual power supply as long as difference between two supplies is 2V to 36V and VCC is at least 1.5V more positive than input common mode voltage. Current drain is independent of supply voltage and outputs can be connected to other open collector outputs to achieve wired AND relationships.
- Single supply range from 2V to 36V and dual supplies range from ±1V to ±18V
- Low drain supply current is typically 0.8mA (independent of supply voltage)
- Response time of 0.3µs (TTL level input step)
- Low input bias current is -25nA
- Low input offset voltage is 2mV
- Common mode input voltage range includes ground
- Differential input voltage range equal to maximum rated supply voltage of ±36V
- Low output saturation voltage
- Output compatible with TTL, MOS and CMOS
- Operating temperature range from 0°C to 70°C
- This device has limited built-in ESD protection. The leads should be shorted together or device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.
2293778
