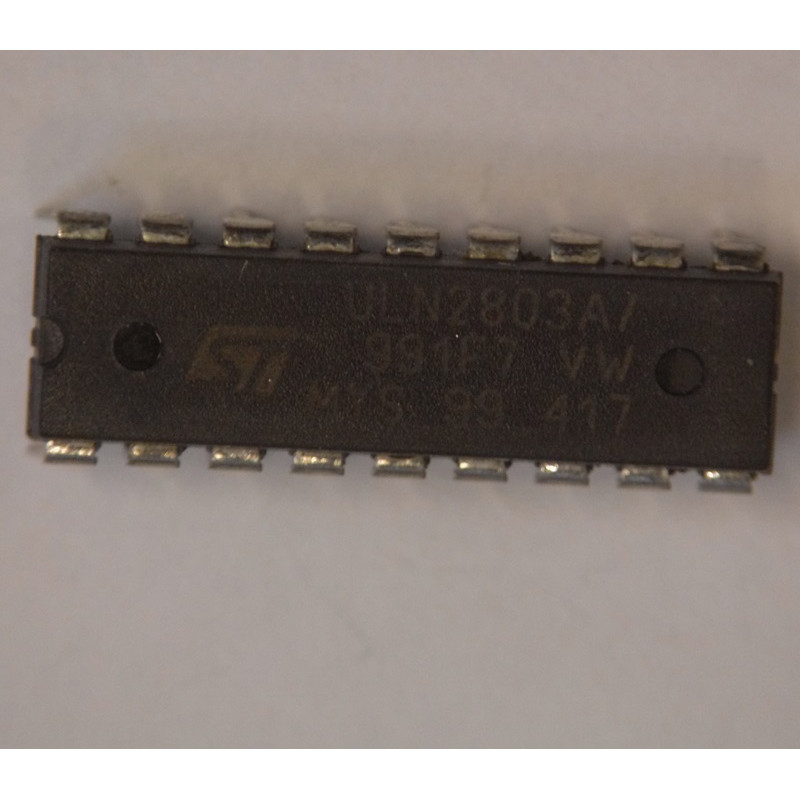

ULN2803A DARLINGTON ARRAY 8NPN, 2803, DIP18

The STMicroelectronics ULN2803A is an array of eight Darlington devices in through-hole mount DIP package. The array contains eight Darlington transistors with common emitters and integral suppression diodes for inductive loads. Each Darlington features a nominal load current peak of 600mA (500mA continuous) and can withstand at least 50V in non-conducting state. ULN2803A has a 2.7K input resistance for CMOS and 5V TTL, which simplifies the interconnection of logic families. Inputs in opposite arrangement of outputs to simplify board layout Outputs can be connected in parallel for higher current capacity Integral suppression diodes 50V output voltage DC current gain (hFE) of 1000 Ambient operating temperature range of -20 ° C to 85 ° C 2.25W Power Dissipation (Pd)
