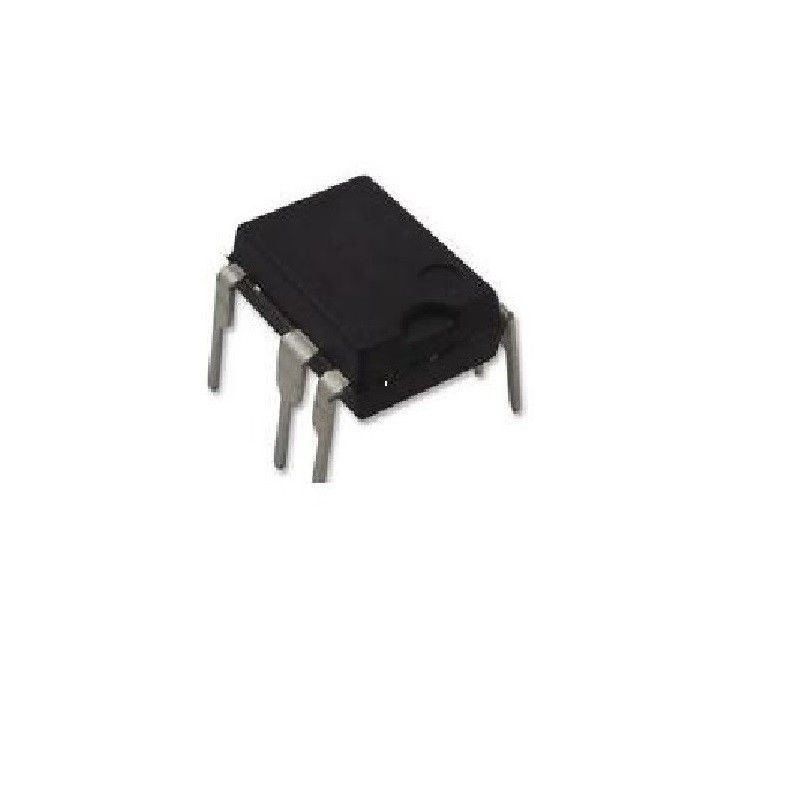

TOP245PN CONV AC/DC, FLYBACK, DIP-7

The TOP245PN is a flexibly designed integrated EcoSmart® offline switch with expanded power that uses the same proven technology as TOPSwitch, integrating high voltage power MOSFETs, PWM control, fault protection and other control circuitry on a single CMOS chip. . It has many built-in features to improve design flexibility, performance, and energy efficiency. It is an integrated switch mode power supply chip that converts a current at the control input into a duty cycle at the open drain output of a high voltage power MOSFET. During normal operation, the duty cycle of the power MOSFET decreases linearly with increasing current from the CONTROL pin. It incorporates many additional features that increase power performance and design flexibility. Patented high-voltage CMOS technology enables effective integration of high-voltage power MOSFETs.

Extended power range for more power
Fully integrated soft start for minimal overload / stress
Externally programmable accurate current limit
Longer duty cycle for higher power input capacitor with reduced footprint
Line undervoltage detection without dropout interference
Line Surge Disconnect Extends Line Transient Limit
Direct line supply with reduced maximum duty cycle that rejects line ripple and limits DCMAX inline
Frequency fluctuation reduces EMI and EMI filtering
Regulates to zero load without simulated load
Mid-frequency option in Y / R / F packages for video

Hysteretic thermal shutdown for automatic recovery after failure
Large thermal hysteresis that prevents PCB overheating
Reduced frequency under load for high efficiency in suspension
Allows disconnection / activation via input port / LAN
132kHz frequency reduces transformer / power supply size
Extremely low power consumption in remote off mode 80mW at 110VAC, 160mW at 230VAC
