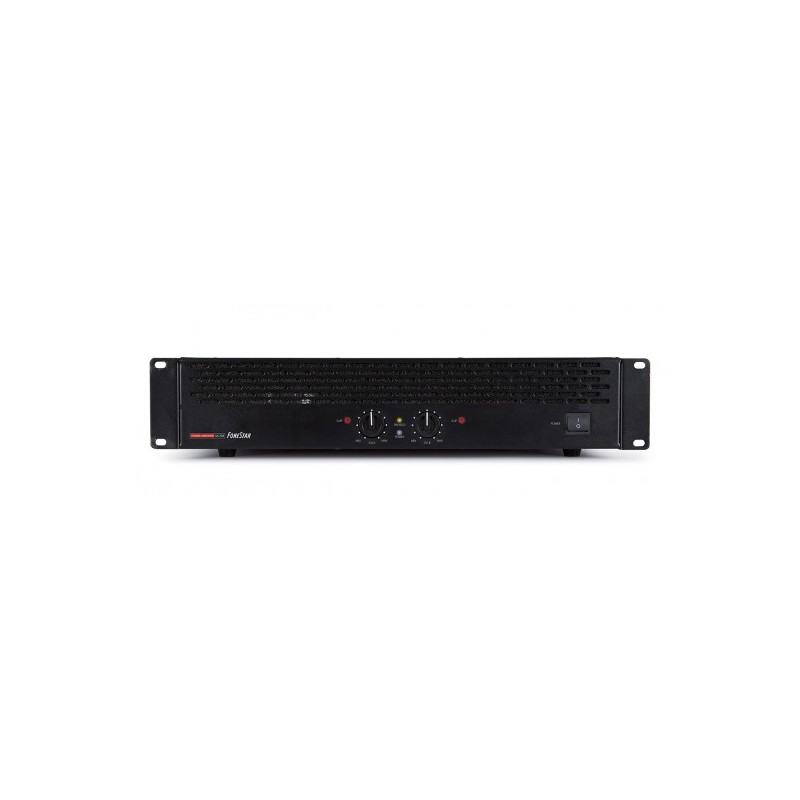

POWER AMPLIFIER SA-204
€273.82
Tax included
High quality, stable and reliable professional stereo power amps.
CHARACTERISTICS
Professional stereo power amp.
STEREO POWER
Stereo mode:
150 + 150 W RMS at 4 Ω
100 + 100 W RMS at 8 Ω
Bridge mode: 180 W RMS at 8 Ω
150 + 150 W RMS at 4 Ω
100 + 100 W RMS at 8 Ω
Bridge mode: 180 W RMS at 8 Ω
FUNCTIONS
Forced ventilation
LED power, protection and signal peak indicators
LED power, protection and signal peak indicators
PROTECTION
3 circuits: temperature, short circuit and surge
CONTROLS
Volume per channel
GND lift earth disconnection
Parallel/stereo/bridge operating mode selector
GND lift earth disconnection
Parallel/stereo/bridge operating mode selector
INPUTS
2 unbalanced aux lines, 6.3 mm jack and RCA 20,000 Ω 0.77 V
RESPONSE 10-50,000 Hz
DISTORTION Harmonic: < 0.05 %
DAMPING FACTOR > 150
S/N RATIO > 85 dB
CROSSTALK > 70 dB
SLEW RATE 20 V/µs
OUTPUTS Loudspeakers: 4-8 Ω stereo, 6.3 mm mono jack, screw terminals and banana plugs or loudspeaker connector
POWER SUPPLY 230/115 V AC, 700 W maximum
DIMENSIONS 483 x 89 x 350 mm depth
2 U 19" rack
2 U 19" rack
WEIGHT 7.2 kg
SA204
