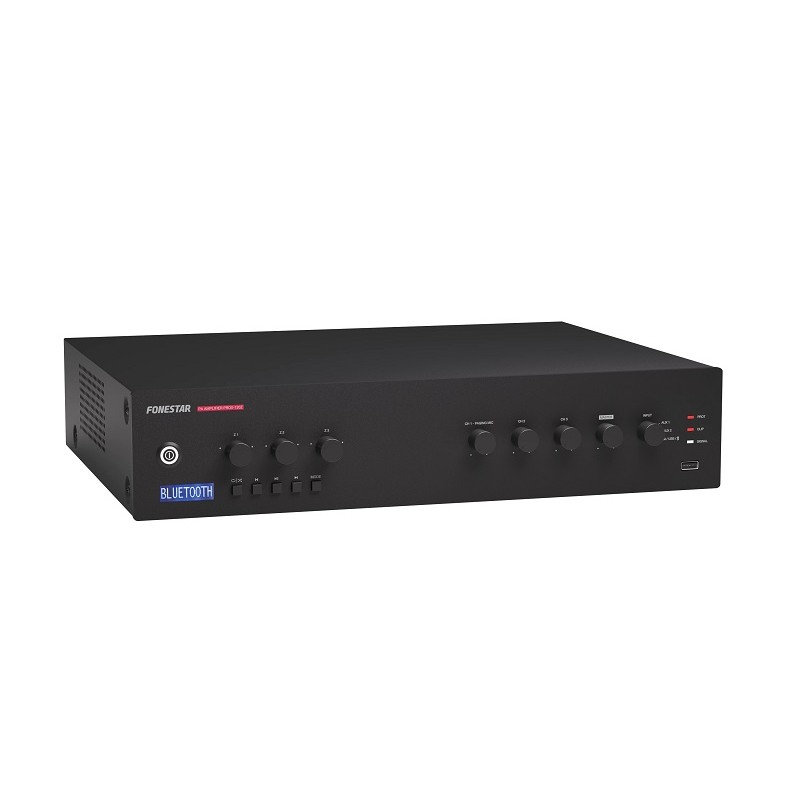

PROX-120Z Public Address Amplifier

The best space sound system tool. Reliable for long work days. Distributed audio for public address installations with 100 V speakers, also with low impedance output. Versatile background music player. Bluetooth, FM and USB memory player. With auto play function when turned on. It has 3 zone outputs with volume control for different music levels per zone. Easy handling for the user and a current and discreet design. A solution that adapts to any budget. Secure and durable connections with low maintenance. It can be used on a desktop or installed in a rack. Perfect for public address and background music systems with 100V or low impedance line speakers. Commercial premises, educational centers, monuments, exhibitions, bars, restaurants, etc.

FEATURES: Public address amplifier Bluetooth/USB/FM player. Microphone inputs with mix, gain and priority level control. Input priorities by signal level. Tone controls. 100 V and 4 Ω outputs. 3 output zones with volume and off control. POWER: 120W RMS RESPONSE: 40-20,000 Hz (-10 dB) DISTORTION: THD+N: < 1% @ 1 kHz SIGNAL/NOISE RATIO: >77 dB PROTECTIONS: Overcurrent, DC and short circuit at the output INPUTS: CH 1 balanced mic/line with Phantom 48V. Combo connector (XLR + 6'3mm) and euroblock. CH 2 and 3 balanced mic/line with Phantom 48V. Euroblock connector. Micro signal level: 6 mV RMS (-44 dBV) / 600 Ω Line signal level: 250 mV RMS (-12 dBV) / 100k Ω 2 AUX 2 x RCA and euroblock connector. Signal level 300 mV RMS (-10 dBV) / 47,000 Ω 1 emergency. Euroblock connector. Speaker line signal level 100V 1 Mute (Emergency Priority) for contact closure. euroblock connector OUTPUTS: 1 line. 2 x RCA connector. Signal level 1.25 V RMS (+2 dBV) 100 V or 4 Ω speaker output, or 3 100 V speaker zones with 5-position volume selector and OFF. Connector threaded terminals IMPEDANCE: 4 Ω and 100 V line (83Ω) FUNCTIONS: Input priority (Voice over VOX inputs): 100V Emergency Input with maximum priority, attenuates the rest of the inputs Mute by contact closure, attenuates all inputs except the 100 V Emergency input. Channel 1 with priority over other inputs, selectable level Channel 2 and 3 with priority over auxiliary inputs and player, selectable level Other functions: Light indicators for power, protection, peak signal and output signal Temperature controlled forced ventilation cooling PLAYER: Bluetooth/USB/FM player for ambient music playback Supported MP3 and WAV files Maximum USB memory capacity 64 GB Autoplay, starts playback automatically when turned on Memory of the last selected mode Play mode memory (random, repeat) CONTROLS: Microphone volume Mic/line/phantom selector Master volume Auxiliary input selector or player Zone volume Tone: Bass and Treble (+/- 10 dB 100 Hz and 10k Hz) microphone gain Priority activation signal level (VOX) TEMPERATURE: Operation: 0º ~ 40ºC MAXIMUM HUMIDITY: 95% POWER: 230/115 V AC 50-60 Hz, 320 W Fuse AC 230 V 3.15 A / 115 V 6 A MEASUREMENTS: 433 x 89 x 360 mm depth. 2 U rack 19'' WEIGHT: 9.6 kg ACCESSORIES: FM Antenna Bluetooth antenna Power cord Rack supports
