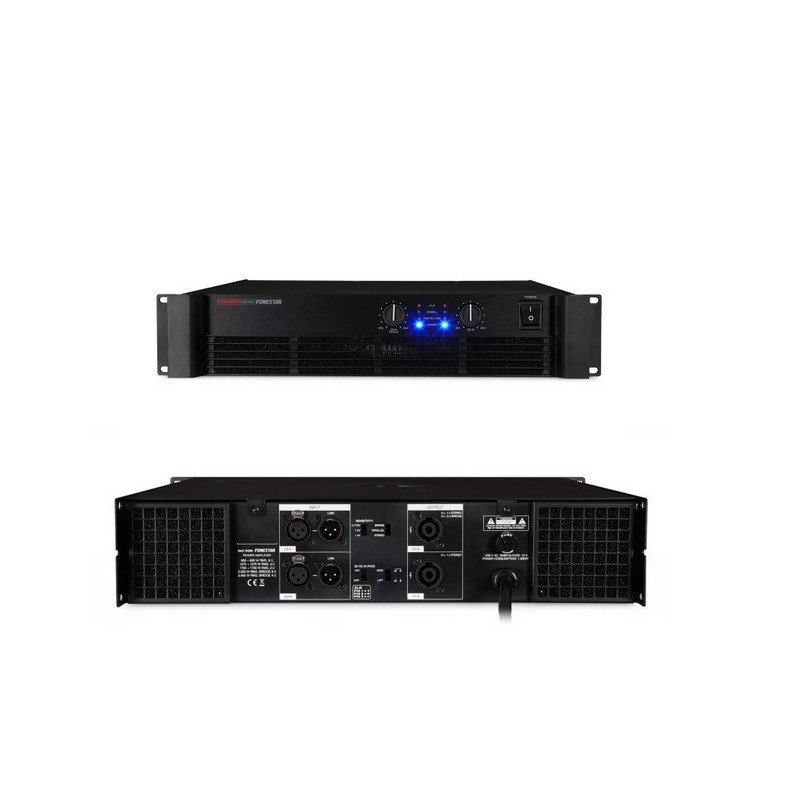

SA23400 FONESTAR POWER STAGE

POWER

Stereo and parallel mode:
850 + 850 W RMS at 8 Ω
1,275 + 1,275 W RMS at 4 Ω
1,700 + 1,700 W RMS at 2 Ω
Bridge mode: 2,550 W RMS at 8 Ω
3,400 W RMS at 4 Ω

PROTECTION

Soft start, temperature, short circuit, surge, clip limiter, continuous voltage, ultrasound and RF
2 variable speed fans

CONTROLS

Volume per channel
Stereo/parallel/bridge operating mode selector
Sensitivity selector
GND lift earth disconnection
30Hz high pass filter

INPUTS 2 balanced aux line inputs XLR

RESPONSE 20-20,000 Hz

DISTORTION Harmonic: < 0.08%

DAMPING FACTOR 400

S/N RATIO > 95 dB

OUTPUTS 2 loudspeaker outputs

POWER SUPPLY 230 V AC, 1,880 W maximum

DIMENSIONS 483 x 89 x 488 mm depth

WEIGHT 24.3 kg
