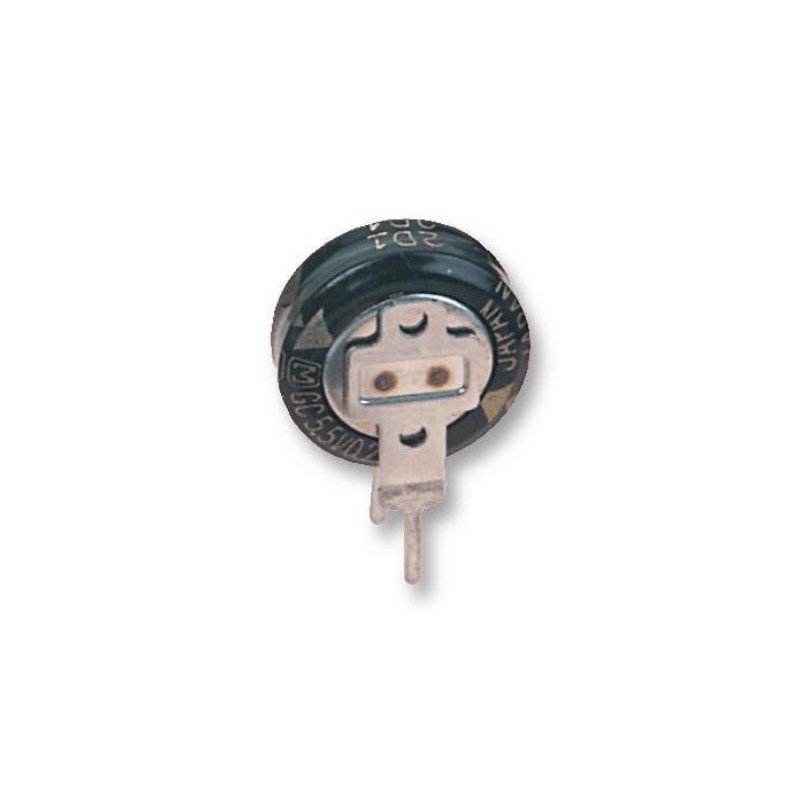

CONDENSADOR 0.22F, 5.5V, RADIAL DOUBLE, EEC0H224V
€3.11
Tax included
The Panasonic SD series are stacked coin type electric double layer capacitors (Gold Capacitor). Electric double layer capacitor does not have dielectric but uses a physical mechanism that generates an electric double layer which performs function of dielectric. These stacked coin type capacitors function as a battery and they are ideally suited for applications requiring secondary power source as a back up energy source for microprocessors and solar battery. These gold capacitors realize large capacitance using activated carbon for electrode.
- Available in 0.22F and 0.33F high capacitance values
- Rated voltage of 5.5VDC
- Operating temperature range -25°C to 70°C
- Endurance of 1000h at 70°C
- Superior charge and discharge performance compared with secondary batteries
- Higher capacitance compared with aluminium electrolytic capacitors
Aplicaciones
Electrónica de Consumo; Dispositivos Portátiles; Administración de Potencia; Industrial
9692681
