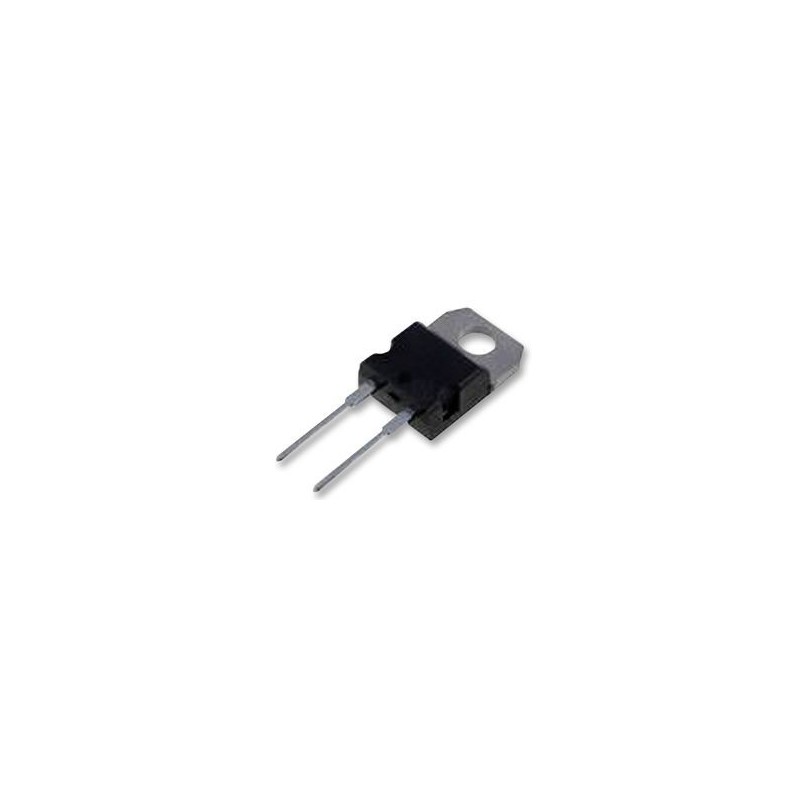

DSEI12-10A DIODE, RÁPIDO, 12A, TO-220AC

DIODE, FAST, 12A, TO-220AC No. of Phases: Simple Repetitive Reverse Voltage Vrrm, Max: 1kV Forward Current If(AV): 12A Forward Voltage VF Max.: 2.1V Diode Module Configuration: Simple Packaging Type: Individual Diode Configuration: Simple Transient Direct Current Ifsm Max.: 75A Diode Design: TO-220AC If current at Vf: 12A Ifsm intensity: 65A Moisture Sensitivity Level (MSL): - No. of Contacts: 2 Pin Configuration: Single Working Temperature Range: -40°C to +150°C Thermal Resistance A, Union-Capsule: 1.6°C/W Substance of Very High Concern (SVHC): No SVHC (16-Dec-2013) Temperature Tc at If: 100°C Max Working Temperature: 150°C Min. Working Temperature: -40°C Junction Temperature Tj Max: 150°C Direct Voltage: 2.1V On Time for IFSM: 10ms Reverse Recovery Time trr Typical: 50ns Reverse Recovery Time, trr Max: 60ns Diode Type: Fast Recovery Termination Type: Through Hole
