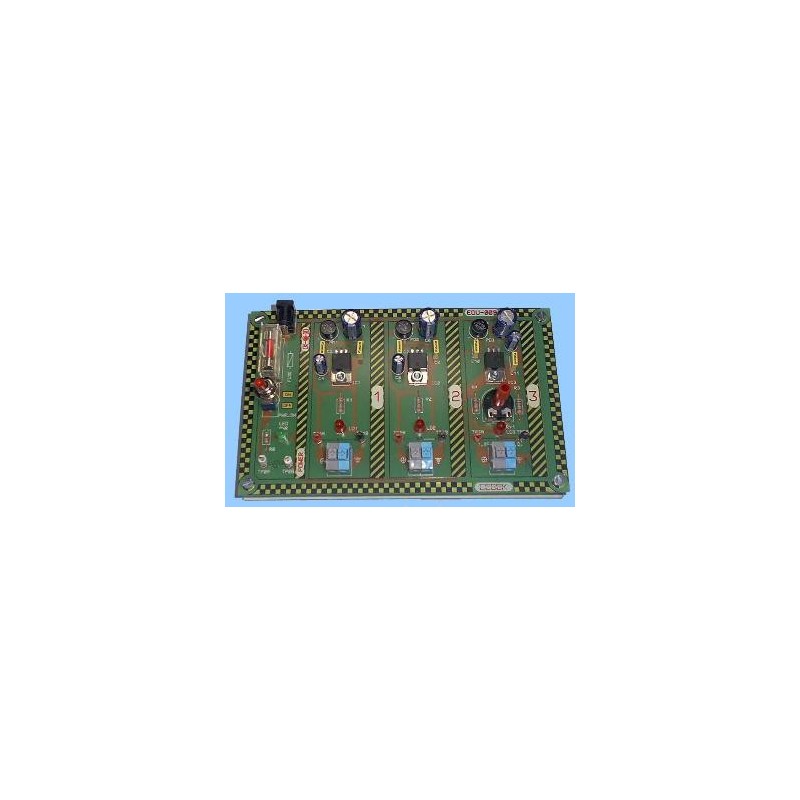

FOOD SOURCE PRACTICE KIT

Segmented into 3 main practices, the ED-009 experiments on power sources that can be cut-off, based on voltage regulators, with fixed, variable, negative output, etc.Practical 1. Filter design with respect to the final load current. Ripple voltage, peakPractice 3. Negative power supply. Design, operation.Practice 4. Positive power supply. Operation, characteristics, etc.Practice 5. Variable power supply. Design. Protection diodes function
