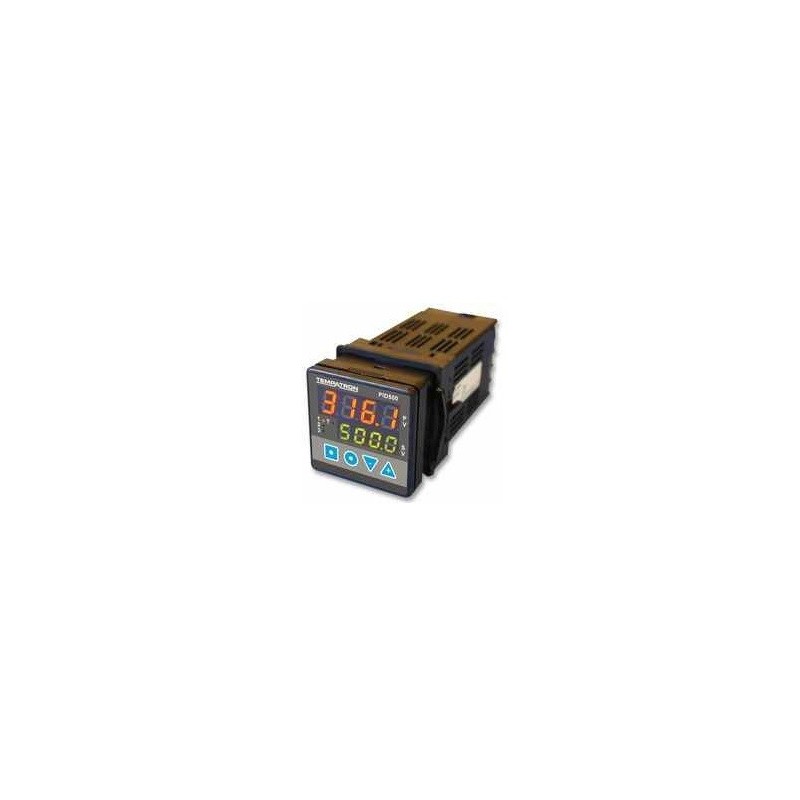

PID500MH-0000 PID CONTROLLER, 1/16DIN, RELÉ HV
search
  • PID500MH-0000 PID CONTROLLER, 1/16DIN, RELÉ HV

PID500MH-0000 PID CONTROLLER, 1/16DIN, RELÉ HV

€198.79
Tax included

PID Controller, PID500 Series, 48 x 48 mm, 85 to 270 Vac, Relay Outputs

Quantity
In Stock

The PID500MH-0000 is a 4-digit auto-tuning Temperature Controller with up to 3 outputs which are designed for control of temperature or processes in a wide range of industrial applications. The controller operate from a range of thermocouple or 2/3 wire PT100 (RTD) input sensors or from a milli-volt, 0 to 5VDC, 0 to 10VDC or 0/4 to 20mA process signal. This version is available with relay, SSR or analogue outputs which can be configured as 1 ON/OFF or PID control and up to 2 alarm outputs or as 2 ON/OFF or PID controls (heat/cool) and 1 alarm output. The temperature controller is housed in a compact DIN48 square enclosure which can either panel mount or surface/DIN rail mount to a socket and is auxiliary powered from either 24VAC/DC or 85 to 270VAC.
  • Dual display of set point and process value
  • 1 or 2, On/Off or PID control outputs
  • Auto-tuning of PID parameters
  • Reverse or direct action
  • Up to 3 relay or SSR outputs
  • Alarm output
  • Thermocouple, RTD and analogue inputs
  • Single point ramp and soak facility
  • 24VAC/DC or 85 to 270VAC powered
1300200
