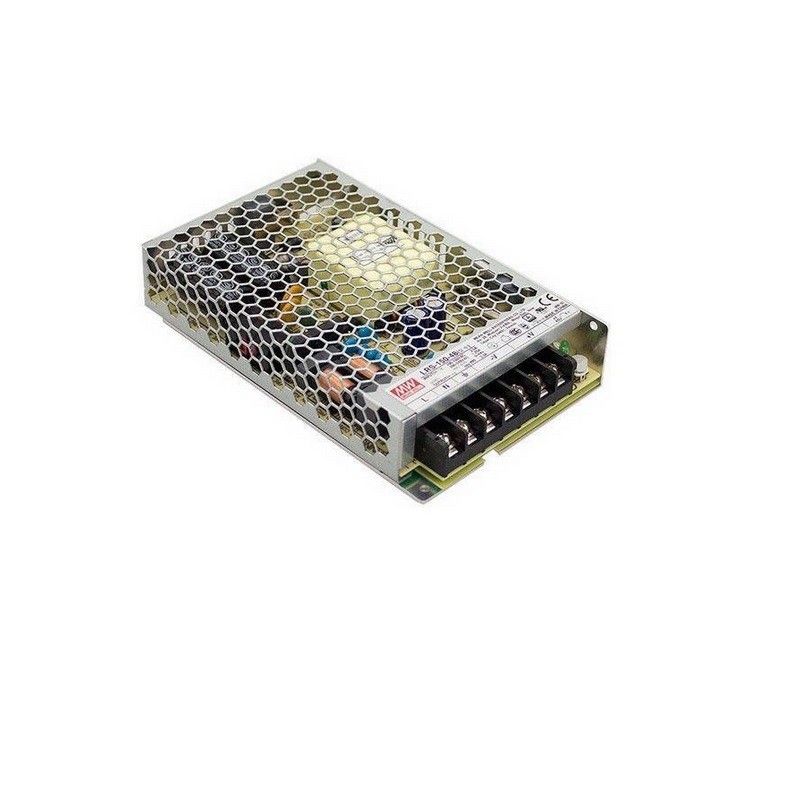

LRS-150-24 POWER SUPPLY 24V, 6.5A, MW

Switching power supply.

Compact size.

Grid box format.

Selectable input range by switch, 85-132Vac / 170-264Vac. 47-63Hz.

Output voltage 24Vdc. Adjustable by potentiometer (21.6-28.8Vdc).

Output current 6.5A. Output current range 0-6.5A as required by the load.

Power: 156W.

Typical efficiency: 89%.

Consumption without load <0.5W.

4000Vdc input-output isolation.

Low noise and ripple of 200mVp-p.

Working temperature: from -30 to + 70ºC ambient temperature. See datasheet for drift curves.

Dimensions (Length x Width x Height): 159 x 97 x 30mm.

3 years warranty.

Manufacturer: MEAN WELL.

It is CE, TÜV, BMSI, EAC, RCM, CCC, KCC and UL certified.

The LRS series are compact size (1U profile) grid box power supplies for industrial, automotive, mechanical equipment and household appliances applications. They can operate at altitudes above 5000 meters (see temperature drift curve).

It complies with EN55032 class B without the need for additional components, although the final design of the board should always be verified. Likewise, it also complies with the safety standard for residential use 62368-1, for many applications such as coffee machines, electrical appliances, etc.

It allows mounting on a plate, wall or din rail with the KDIN accessory.

Typical efficiency: 89%.

Consumption without load <0.5W.

4000Vdc input-output isolation.

Low noise and ripple of 200mVp-p.
